Insulation Depth Is About Performance, Not Appearance
Most insulation works by slowing the movement of energy between the unconditioned attic, walls, floors, or other unconditioned areas and the living space by resisting energy conduction. The better the insulation resists heat flow, the higher its R-value. Depth matters because most insulation materials gain R-value as thickness increases, but different materials deliver different R-values per inch. That means ten inches of one product may not perform the same as ten inches of another.
Why You Cannot Average Insulation Depth
Averaging insulation depth can make an attic appear better insulated than it really is. Insulation does not perform like paint coverage or flooring, where a total amount can be spread out and still provide a uniform result. Each area of the attic must have enough insulation directly above the living space below it. If one section has 18 inches and another section has only 6 inches, the deeper area does not “lend” performance to the shallow area. Heat will still move more easily through the under-insulated portion. This is important because heat loss and heat gain often follow the path of least resistance in a parallel path heat transfer condition. Thin spots, gaps, compressed areas, and disturbed insulation become weak points in the thermal envelope resulting in a lower effective R value than just the average. Those weak points can contribute to hot or cold rooms, higher utility costs, and uneven comfort.
Parallel Path Energy Flow and Why it Matters
The resistance to energy flow through a wall or ceiling is directly affected by the individual components of that total assembly to create an effective R value for that wall or ceiling. While the R values (or resistance value) for layers can be added, materials which are installed in parallel such as a wall stud or ceiling joist with insulation between cannot just be added but must be considered as an area weight conductance to determine the effective R value for the wall or ceiling assembly. The conductance value of a material (U), or its ability to conduct energy, is the inverse of its resistance or 1/R. The 1/R or U values are calculated as a parallel path to create an effective R value. This means that to determine the overall energy efficiency of a ceiling or wall we have to look at the parallel paths of energy flow and their respective resistance to that flow weighted by the area of the conducting material. This is similar to looking at electrical circuits where we need to calculate effective resister values for a part of the circuit where resistors are either in series or parallel. This means that if you leave out required insulation in part of a wall or ceiling, and add extra to another part it is probable that the extra added will not make up for the insulation left out, because we are not averaging R value, but calculating the area weighted conductance to determine the effective R value.
Why the Cited Depth Is the Minimum
- Depth affects R-value. If the insulation is shallower than the cited depth, the attic may not achieve the code required for total thermal resistance for the ceiling system.
- Loose-fill insulation can settle or compress. Blown materials may change over time, and compressed insulation does not perform as well as properly installed insulation at the correct depth which means if you don’t meet the minimums, your future values will be even less as the building ages.
- Attics are rarely perfectly even. Low spots around eaves, attic hatches, walkways, ducts, and mechanical areas can pull the average performance below the target. Since insulation R-value cannot be averaged, you want to have the highest value possible to meet code requirements.
Bottom Line
When there is a requirement to have installed to meet a specified R value for code or because it was desired, treat that number as the minimum depth required—not an average, not a best-case measurement, and not a flexible guideline. Proper insulation depth needs to be present throughout the insulated area because deeper insulation in one spot does not necessarily compensate for shallow or missing insulation somewhere else, and if it did the cost would likely exceed the cost of installing it correctly. Maintaining the required minimum depth helps protect comfort, reduce energy waste, and supports the performance the home was intended to deliver. If you are unsure whether your attic meets the cited depth, a qualified inspection can help identify low areas, disturbed insulation, and opportunities for improvement.
A Simple Example
Take the simplified example of a ceiling required to have an R-38. If half the ceiling is 8 inches of blown fiberglass insulation, the other half has 16.25 inches of insulation. You cannot just average the R values to get an R 38 because you must calculate the parallel path R-value. To calculate energy flow (Q) the basic energy transfer formula is:
Q=U*A*delta-T
Q = energy flow
U = conductance (1/R)
delta-T = The difference in temperature between the attic and conditioned space.
We are interested in the total R value or 1/U Total.
To calculate the area weighed average for U (conductance):
Uavg= ((U1*A1)+(U2*A2))/Atotal
U1,U2,….etc. = 1/R1, 1/R2,… etc.
A1,A2,….etc. = is the area of each section of insulation for a given R value.
Atotal = The total area of insulation being considered.
Taking our example above:
Uavg = (((1/23.2)*.5)+(1/16.25)*.5))/1 = .032
Ravg = 1/Uavg = R-31

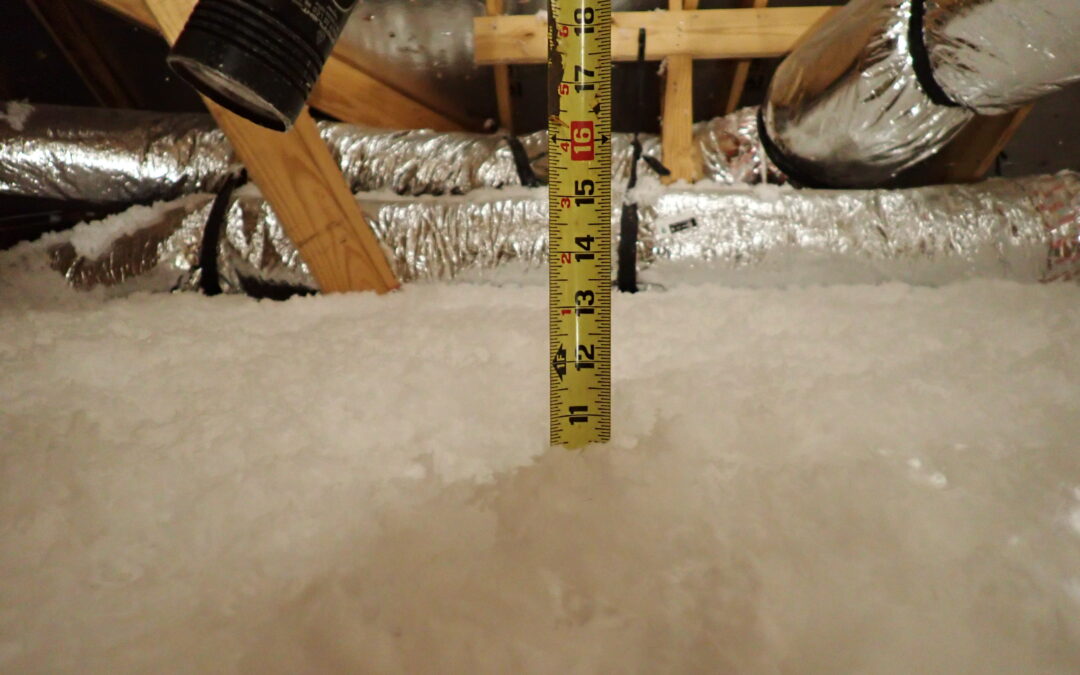

When you are paying for an R-38 nobody wants an R-31. If the cited attic insulation depth is 13.25 inches, that means the attic needs at least 13.25 inches of the correct material, installed properly and distributed consistently, to meet the intended performance level. If several areas measure only 8 or 12 inches, the attic should not be considered properly insulated simply because one area reaches 13.25 inches or more. The minimum depth needs to be present across the insulated area, not just in some areas. As you can see from Q=U*A*delta-T This means that the greater the average U value the greater the energy flow through the ceiling. Note that this is a simplified example that does not take into consideration the drywall, dirt, boundary layer, edge effects, etc…. It is for illustration of the concept only.
